The 89 Winnebego Repair Assistance Page

The function of this page is to share pictures of the components of our 1989 Winnebago Cheiftain 33 foot Motorhome with on line mechanics as well as other owners. Feel free to download and use any of these photos.
[Galley Control Panel - Front ]     [Galley Control Panel - Rear]      [Galley Control Panel - Profile ]
[Galley Control Panel - Switch Rear ]         [Galley Control Panel - Area Behind ]     [Electrical Behind Microwave ]
[DC Circuit Panel Over Refrigerator ]         [DC Circuit Panel Opened ]     [DC Curcuit Panel Behind ]
[Water Heater Compartment Electrical - Forward ]     [Water Heater Compartment Electrical - Port Forward ]
[Water Heater Compartment Electrical - Star Forward ]         [Voltage Check for Water Heater ]     [Voltage Reading for Water Heater ]
[Power Converter - All closeup ]         [Power Converter - All ]     [Power Converter - Starboard Side Aft ]
[Power Converter - Starboard Side Fwd ]         [Power Converter - Starboard Side ]     [Power Converter - Forward Side ]
[The Fuse from Inside Compartment ]         [The Fuse Location ]     [The Fuse and Button ]

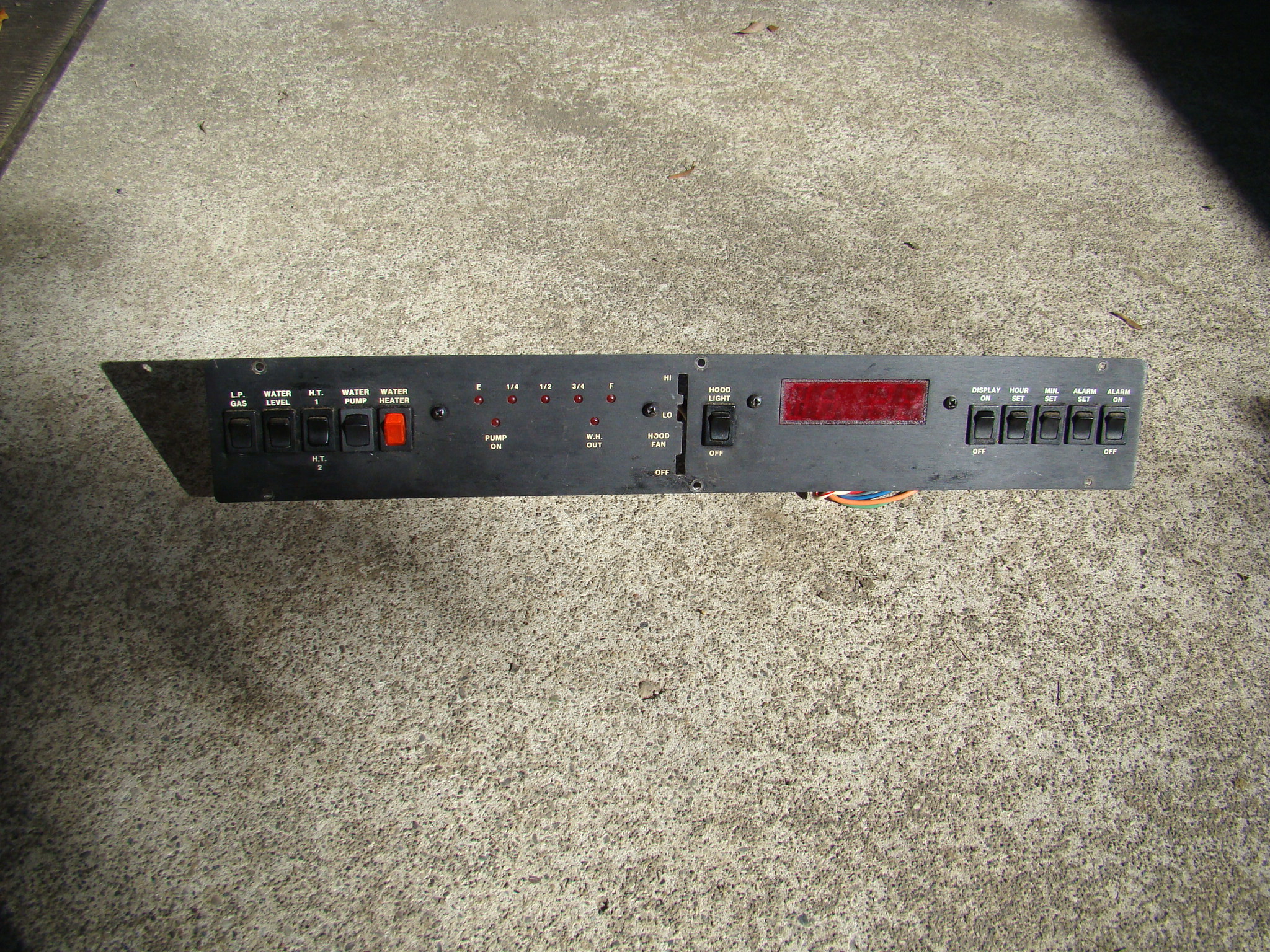

Panel Front
  1. Name: DC Control Panel
  2. Location: Port Side over stove, under Microwave
  3. View: Front Side

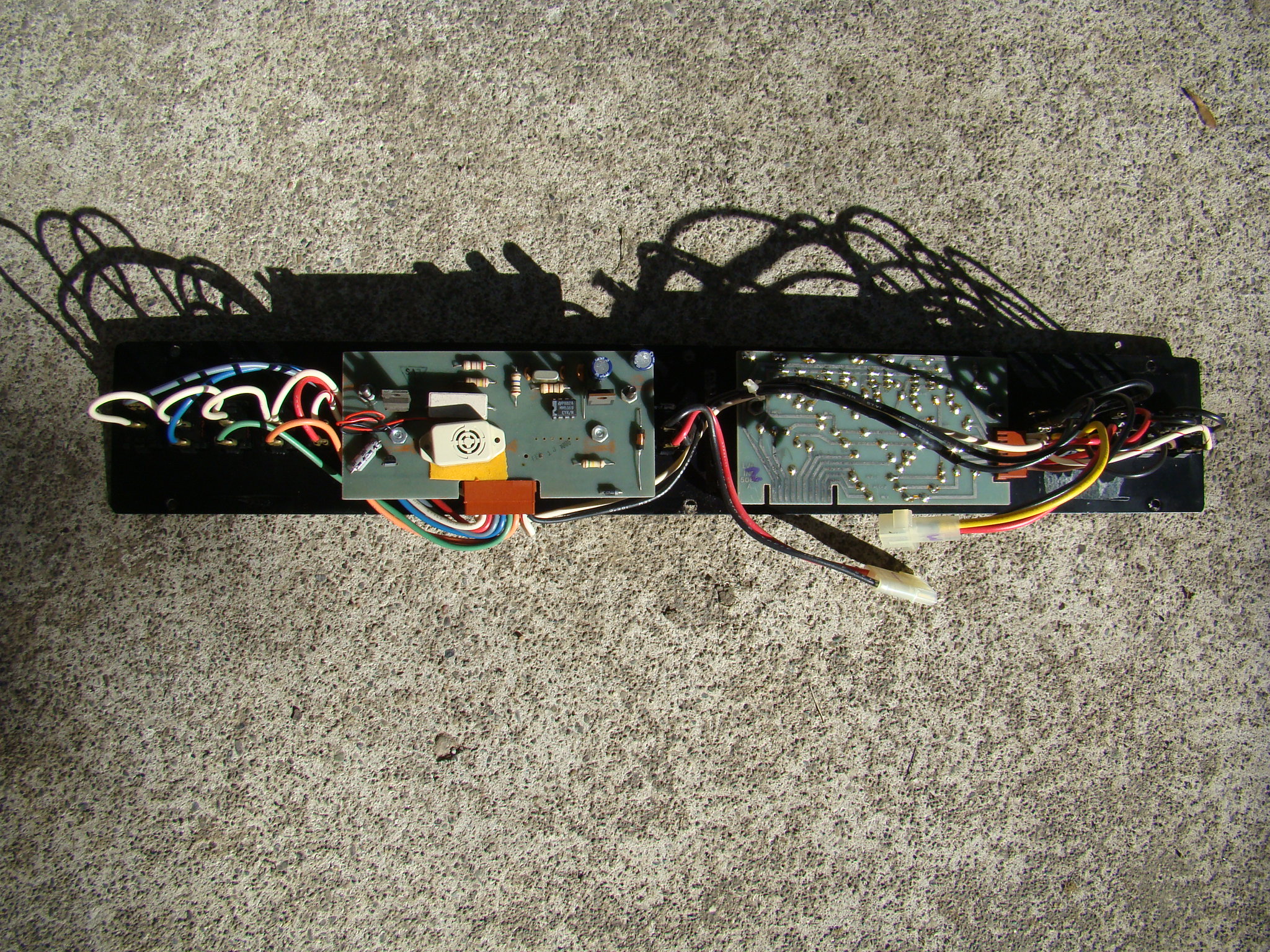

Panel Rear
  1. Name: DC Control Panel
  2. Location: Port Side over stove, under Microwave
  3. View: Back Side

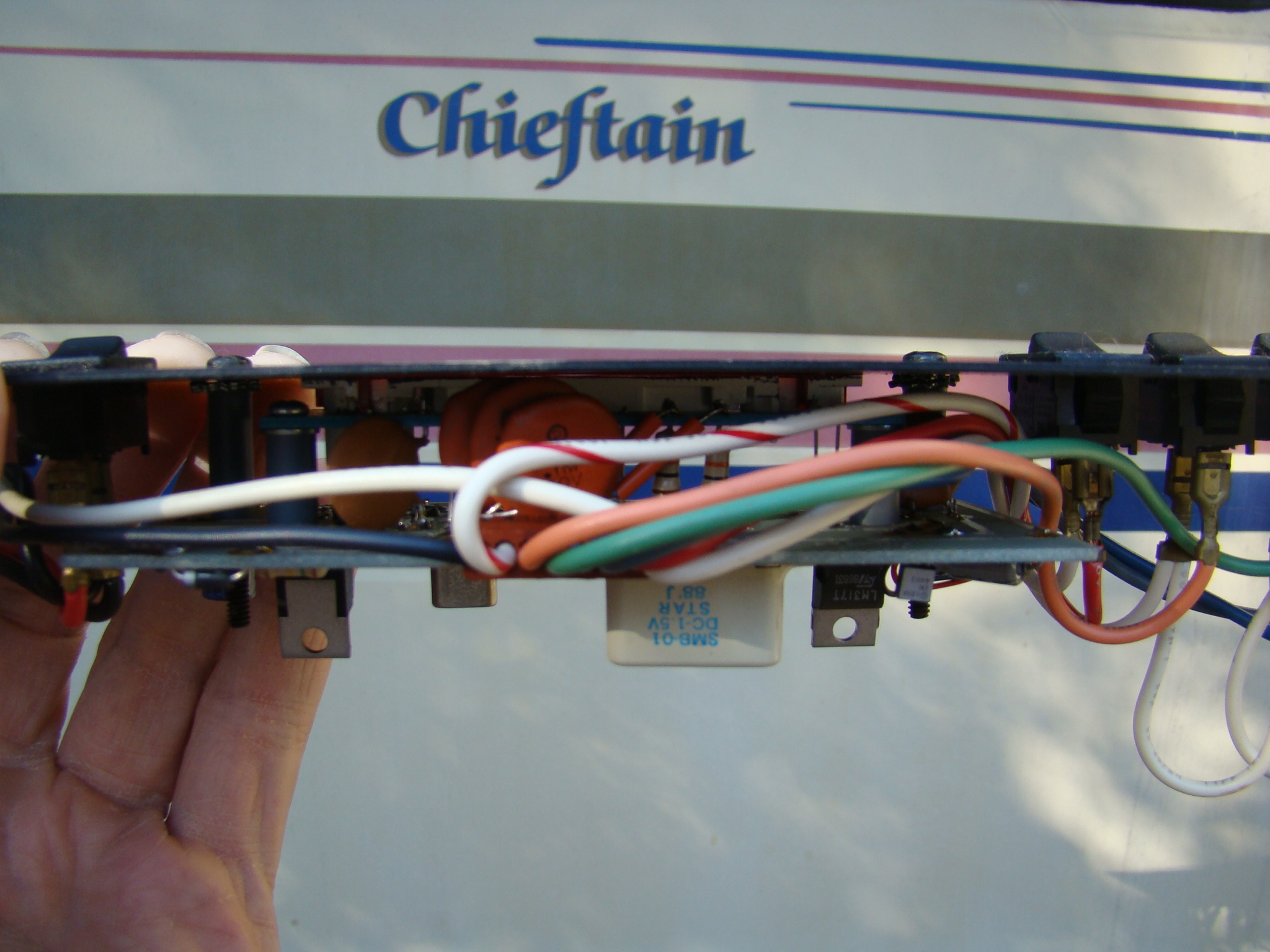

Panel Profile
  1. Name: DC Control Panel
  2. Location: Port Side over stove, under Microwave
  3. View: Profile View

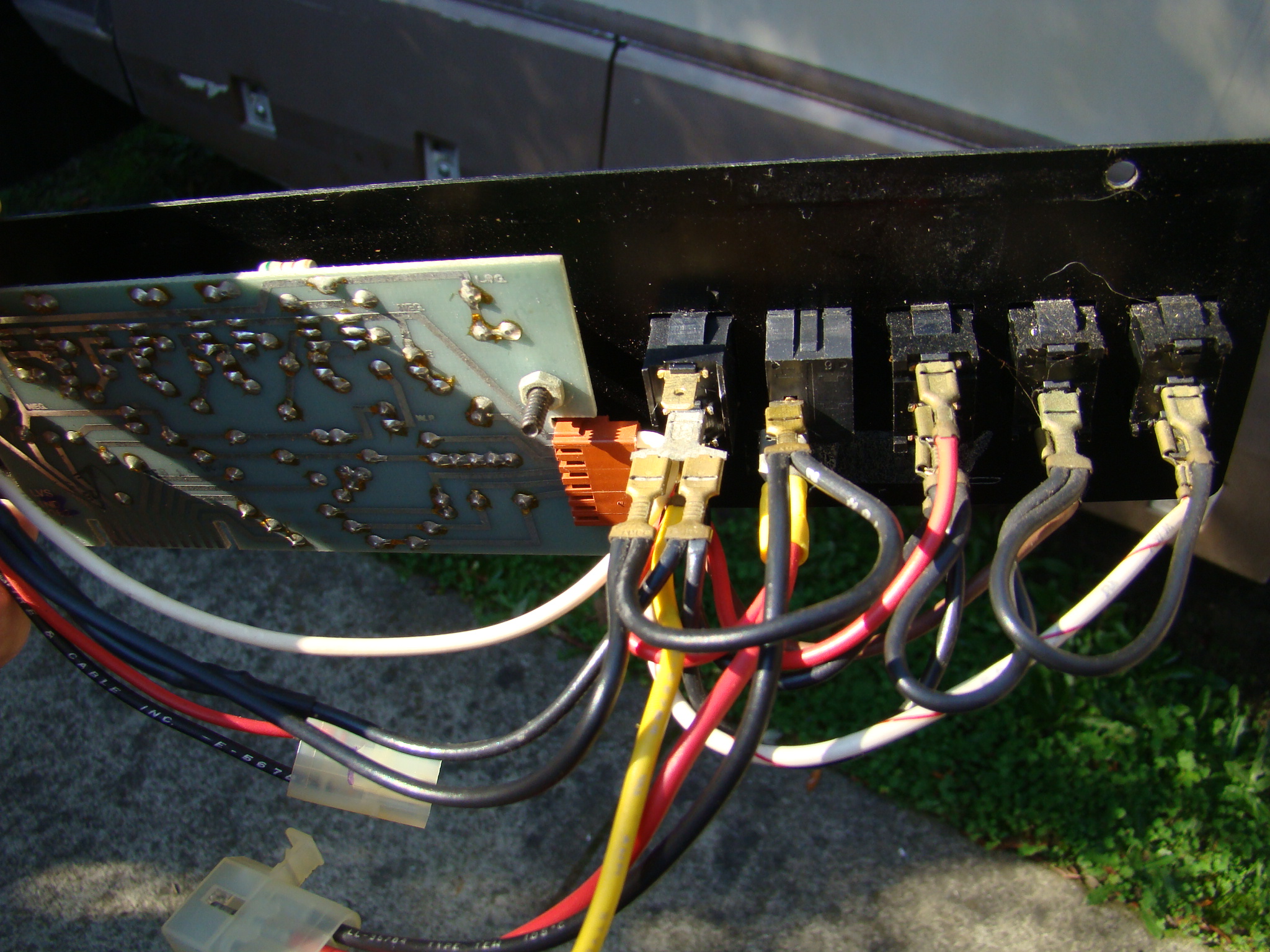

Behind Switches
  1. Name: DC Control Panel
  2. Location: Port Side over stove, under Microwave
  3. View: Rear Detail of Switch area

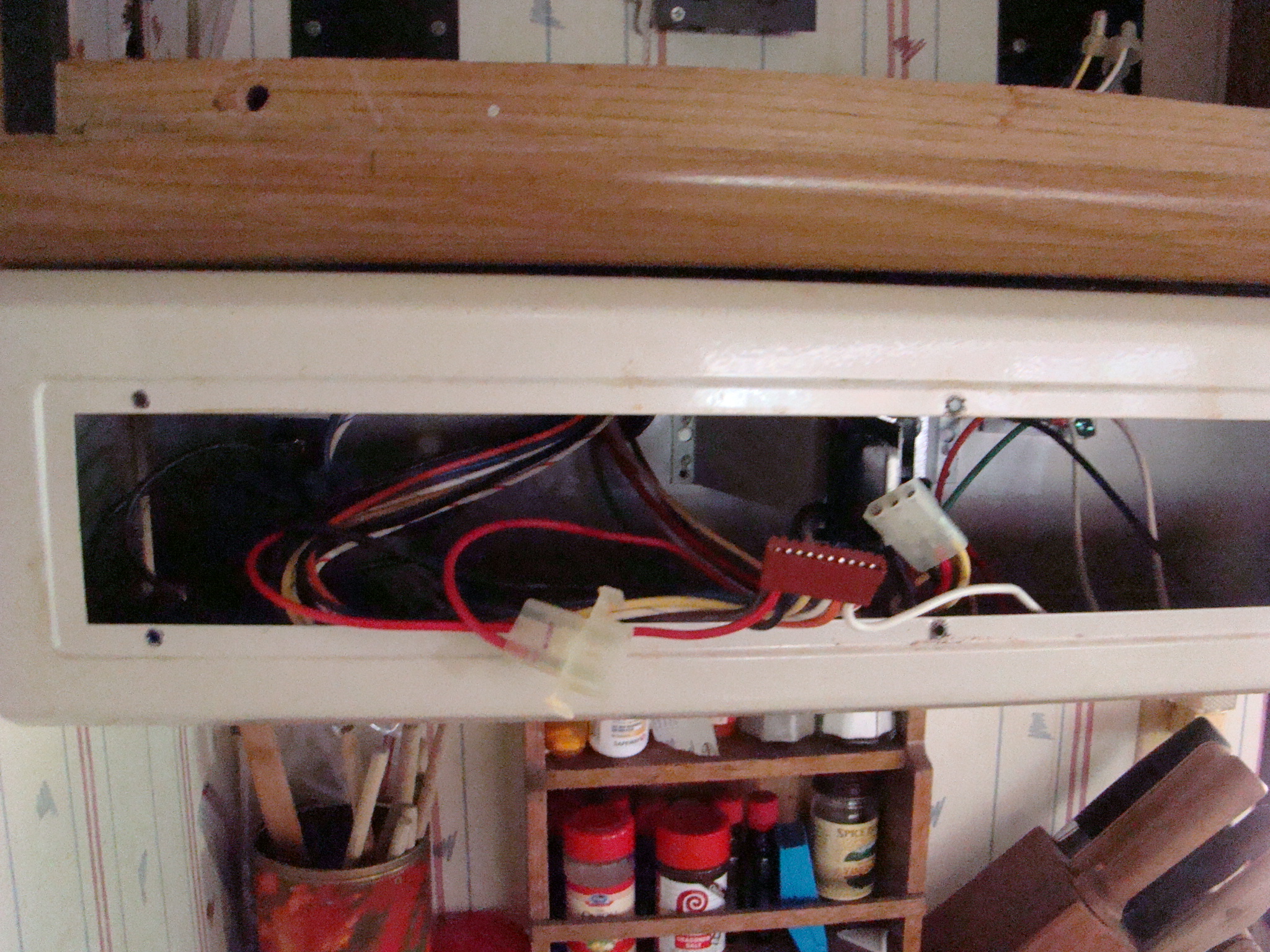

Area behind Panel
  1. Name: DC Control Panel
  2. Location: Port Side over stove, under Microwave
  3. View: Area behind the Panel

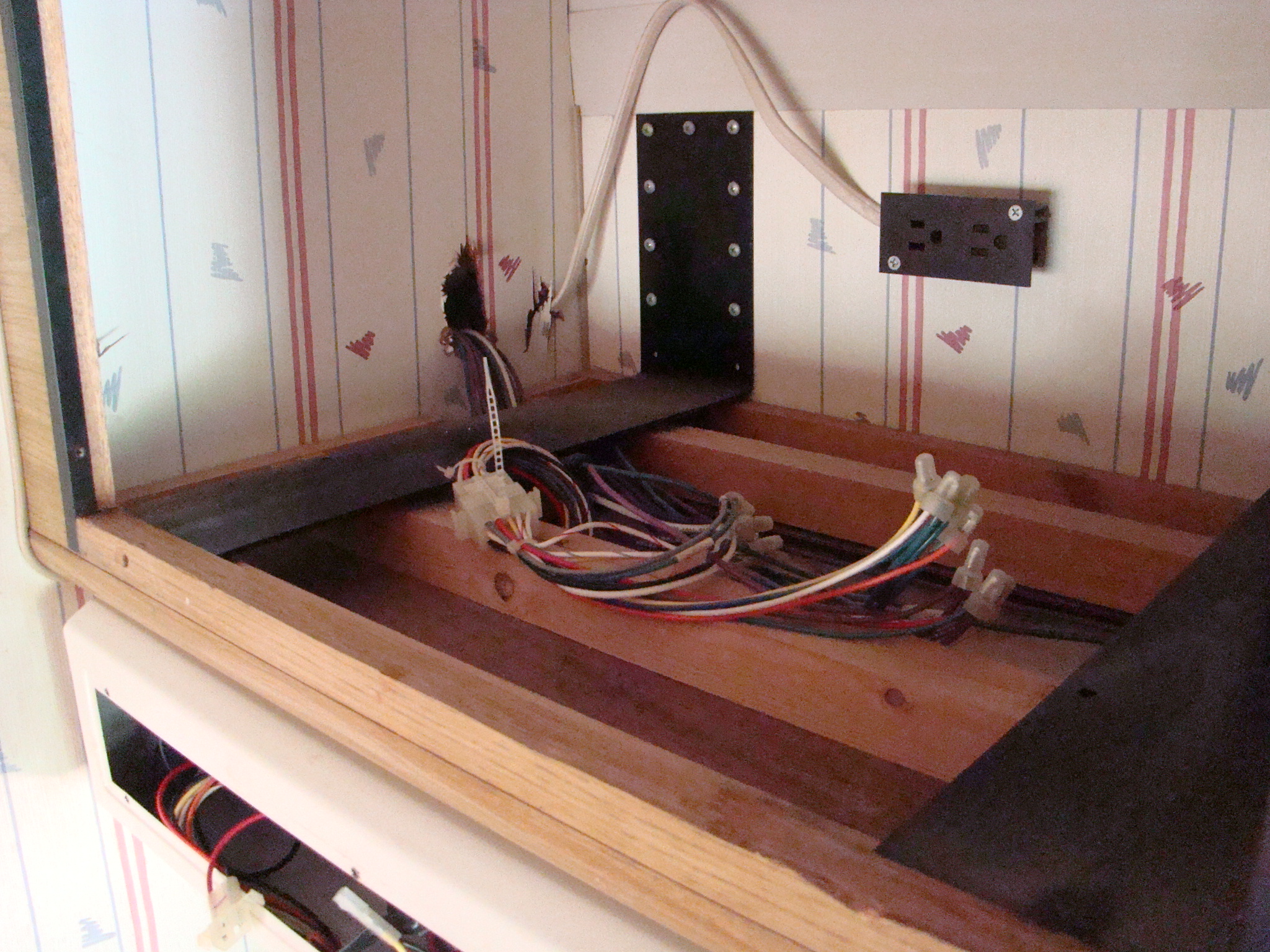

Area behind Microwave
  1. Name: Electical Behind Microwave
  2. Location: Port Side Behind Microwave
  3. View: Electrical with Microwave removed

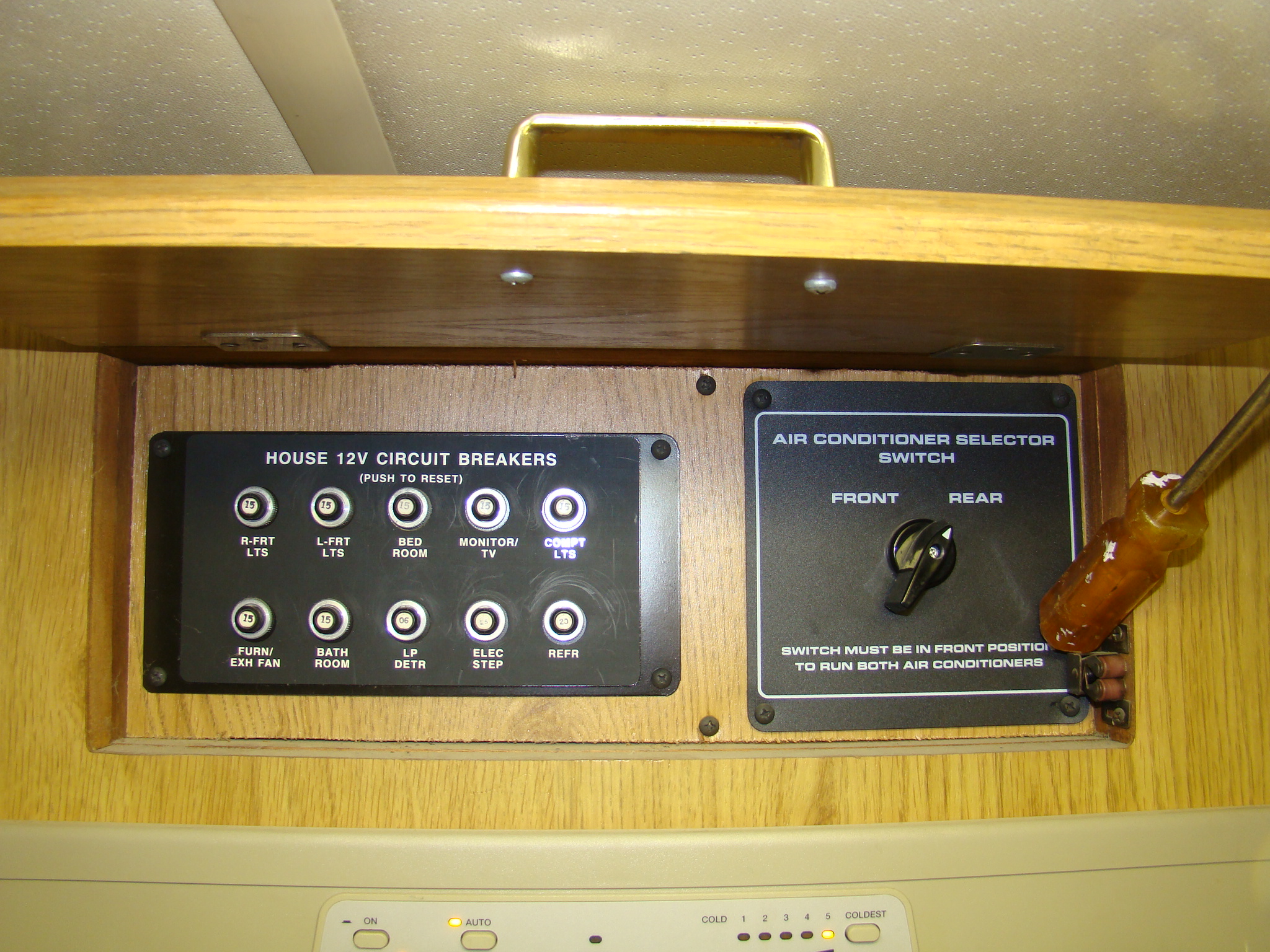

DC Circuit Panel
  1. Name: DC Circuit Breaker Panel
  2. Location: Port Side Above Refrigerator
  3. View: Front Side
DC Circuit Panel
  1. Name: DC Circuit Breaker Panel
  2. Location: Port Side Above Refrigerator
  3. View: From Front Looking inside Compartment

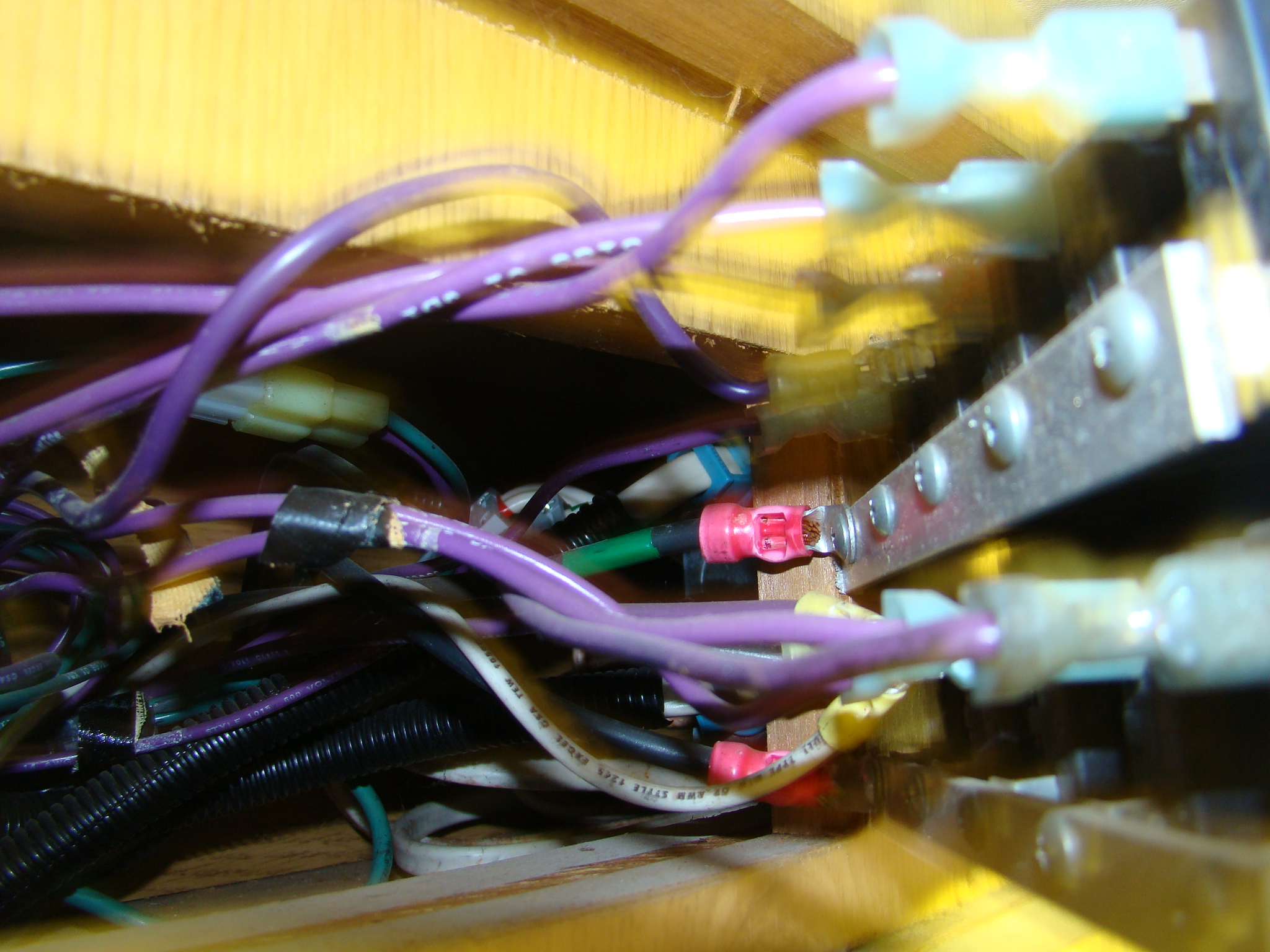

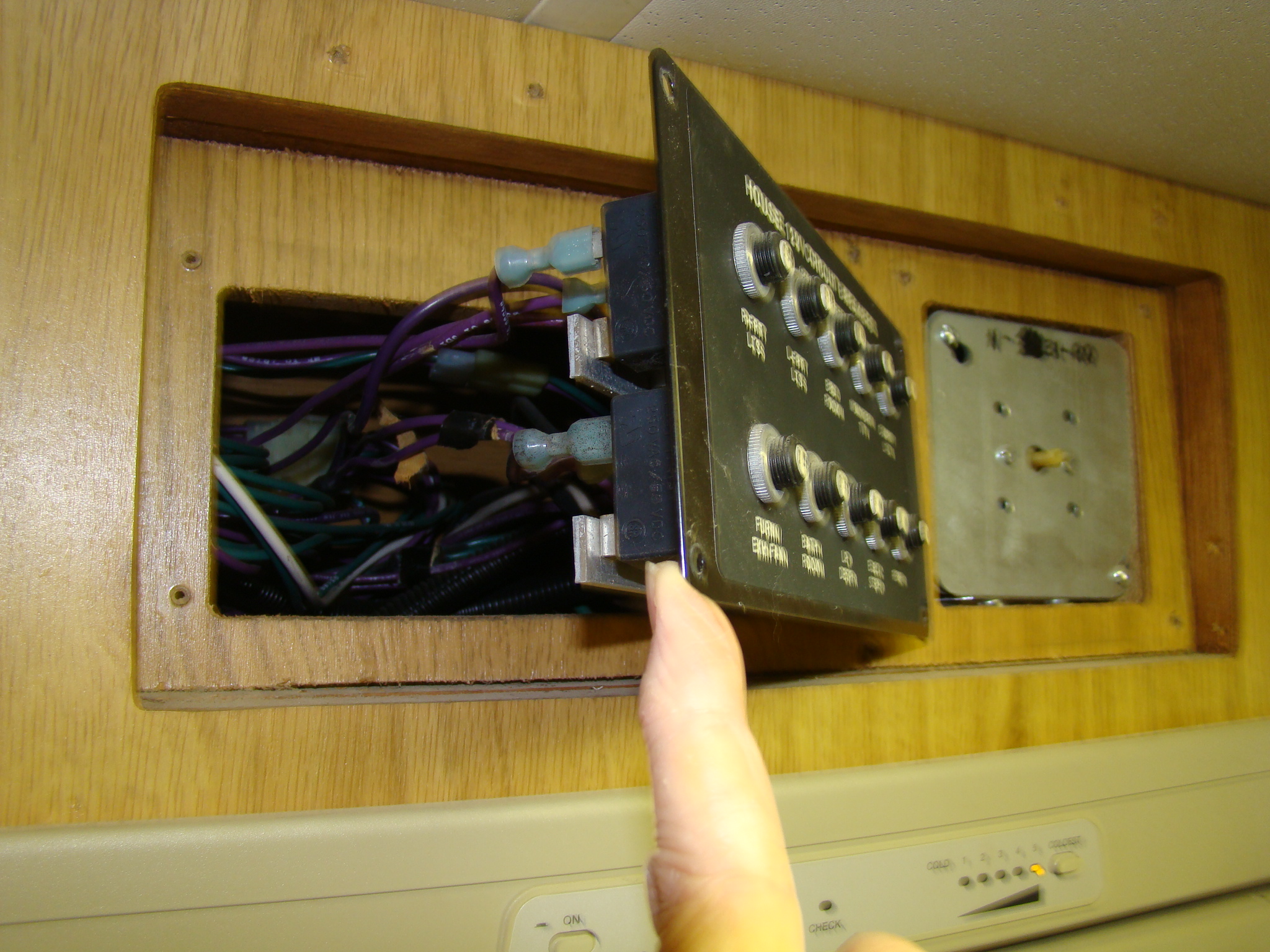

DC Circuit Panel
  1. Name: DC Circuit Breaker Panel
  2. Location: Port Side Above Refrigerator
  3. View: Back Side
Wardrobe Electrical
  1. Name: Wardrobe Electrical Compartment
  2. Location: Starboard Side Below Wardrobe
  3. View: From Above looking down side towards forward of RV

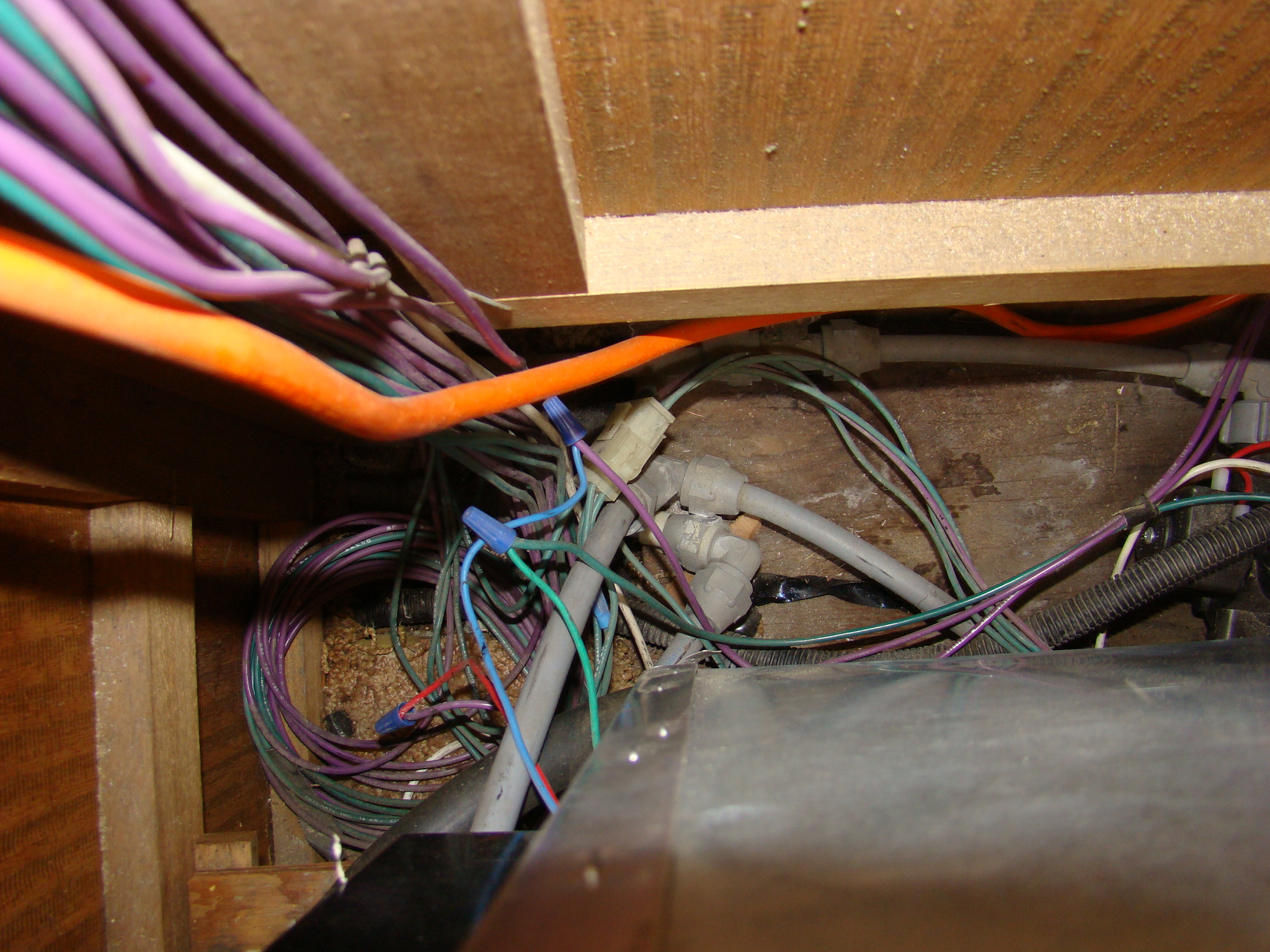

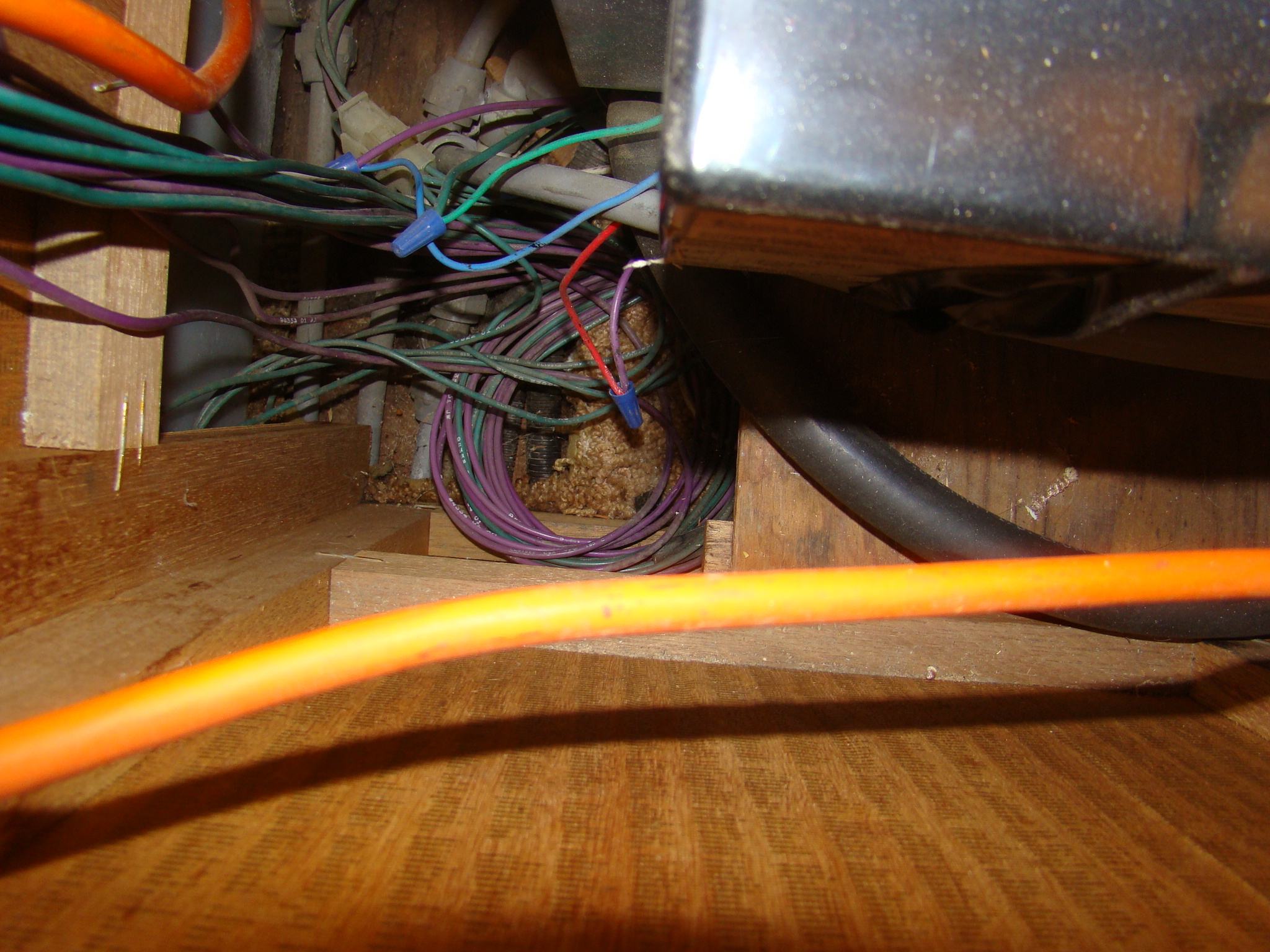

Wardrobe Electrical
  1. Name: Wardrobe Electrical Compartment
  2. Location: Starboard Side Below Wardrobe
  3. View: From Above looking down side Port Side Forward corner

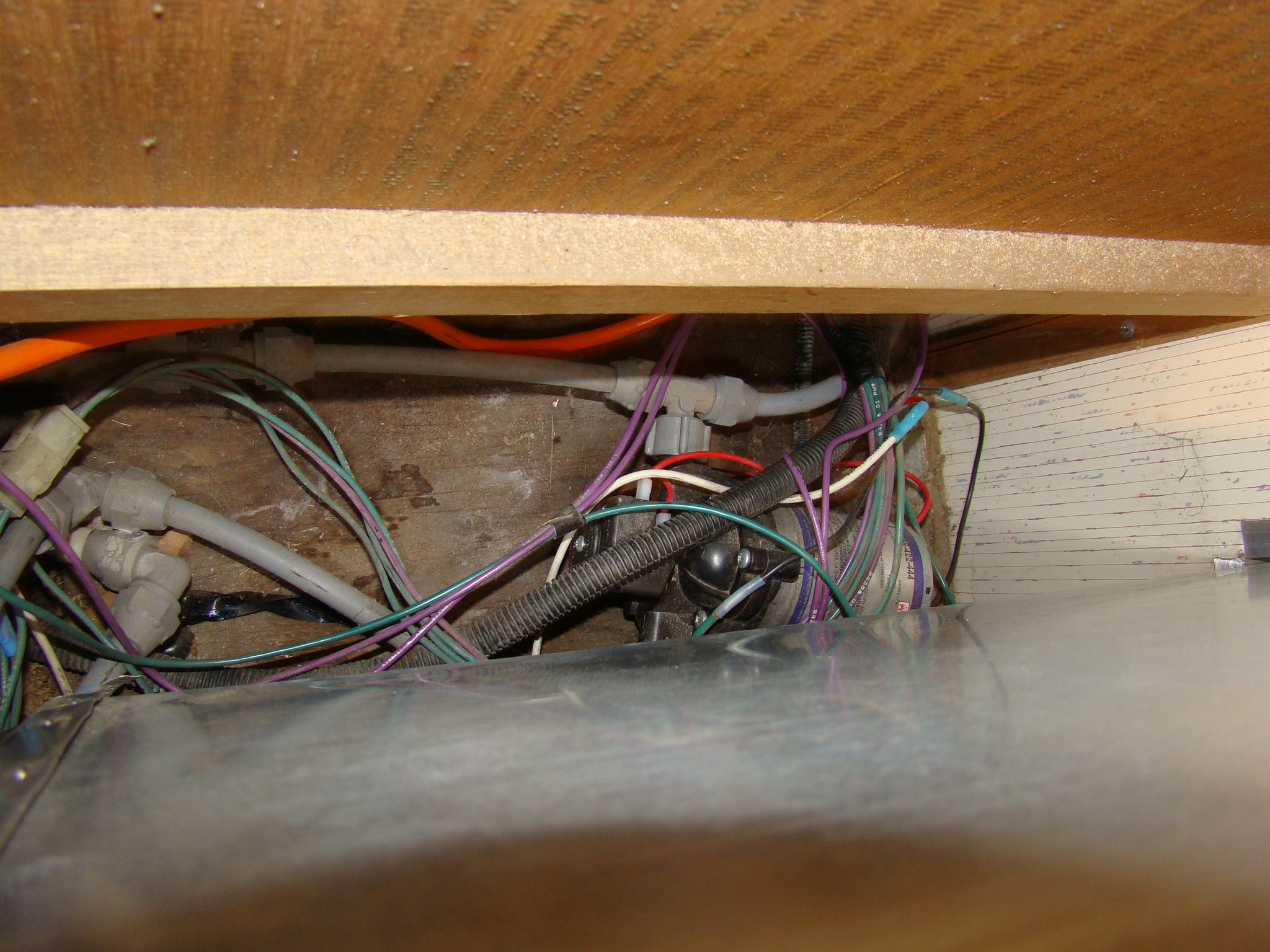

Wardrobe Electrical
  1. Name: Wardrobe Electrical Compartment
  2. Location: Starboard Side Below Wardrobe
  3. View: From Above looking down side Starboard Side Forward corner
Electric Reading Water Heater
  1. Name: Electrical Water Heater
  2. Location: Port Side Galley
  3. View: Looking at Galley

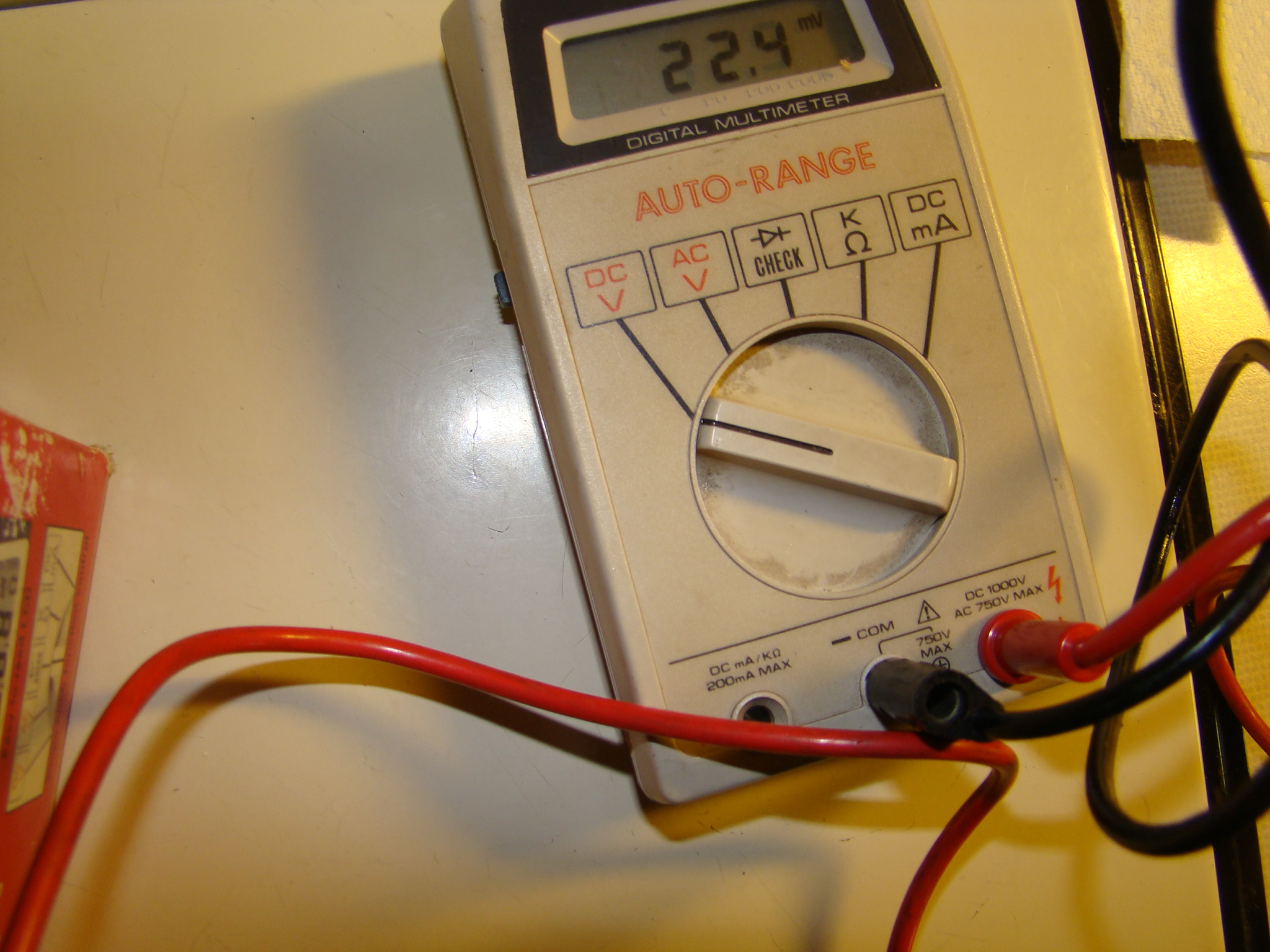

Electric Reading Water Heater
  1. Name: Electrical Reading Water Heater Reading
  2. Location: Port Side Galley
  3. View: Looking at Meter

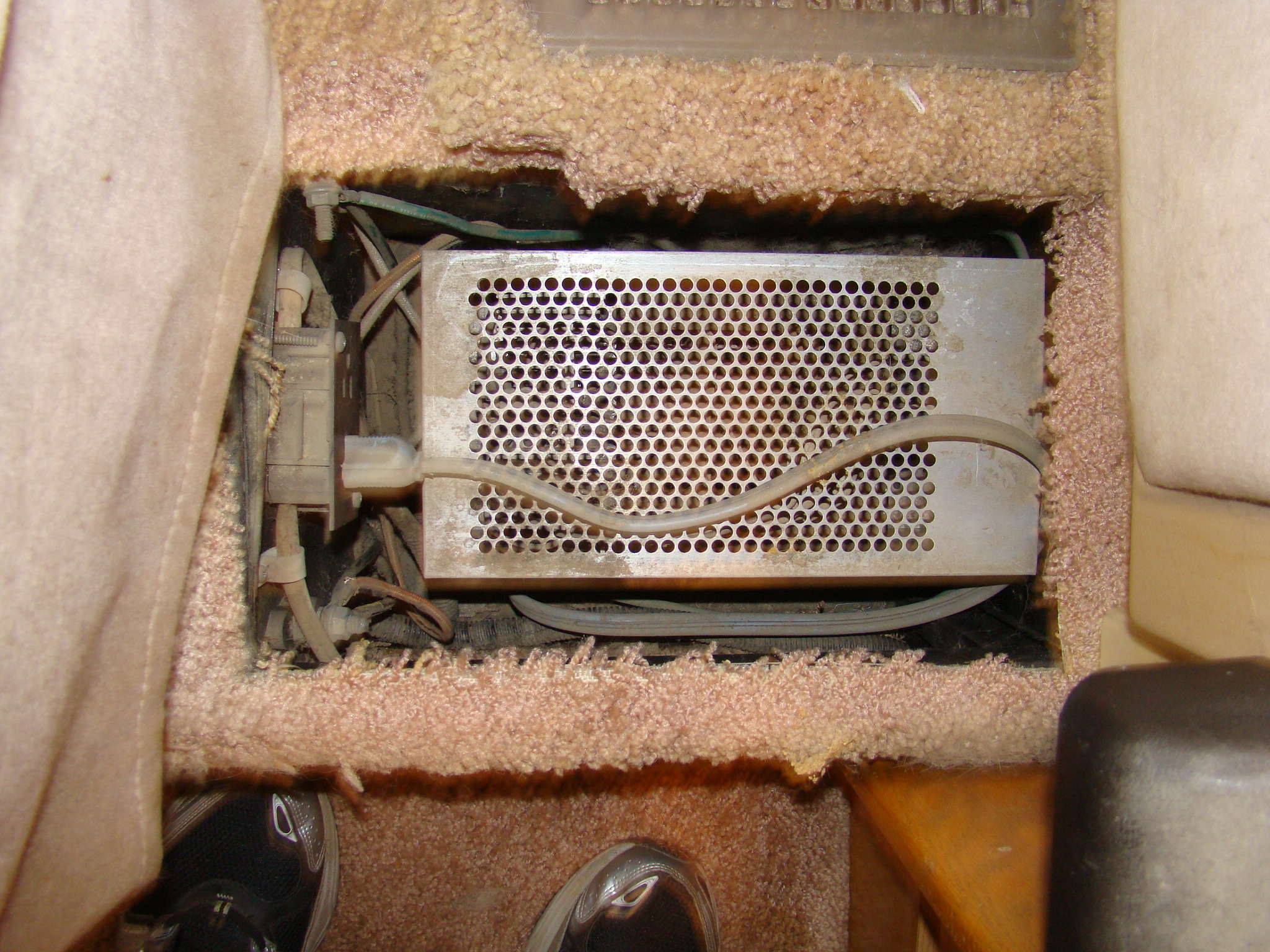

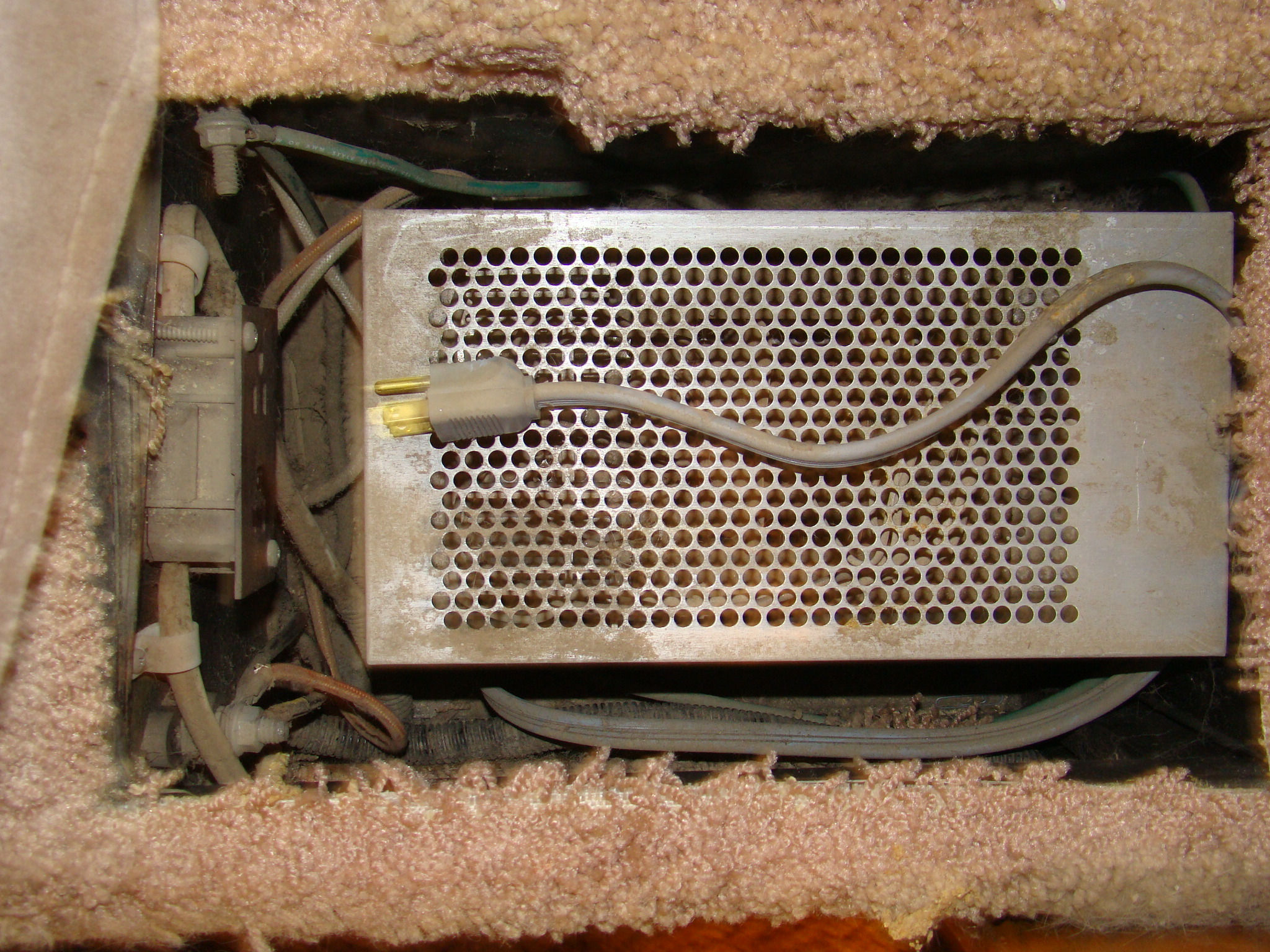

Power Converter
  1. Name: AC to DC Power Converter
  2. Location: Starboard Side under Passenger (Shotgun) seat
  3. View: Looking Down from Behind
Power Converter
  1. Name: AC to DC Power Converter
  2. Location: Starboard Side under Passenger (Shotgun) seat
  3. View: Looking Down from Behind
Power Converter
  1. Name: AC to DC Power Converter Port Side Aft
  2. Location: Starboard Side under Passenger (Shotgun) seat
  3. View: Looking Down from Behind

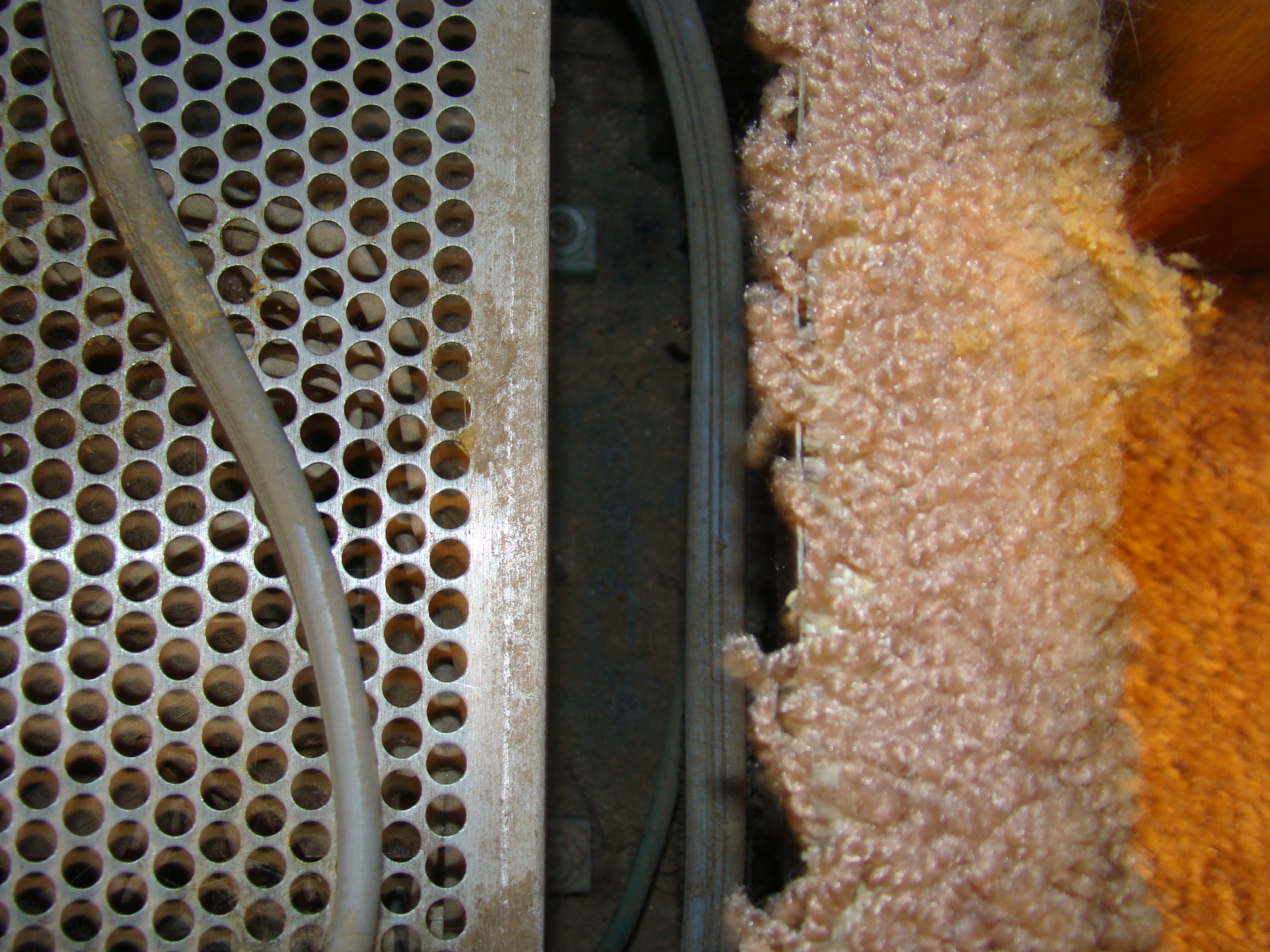

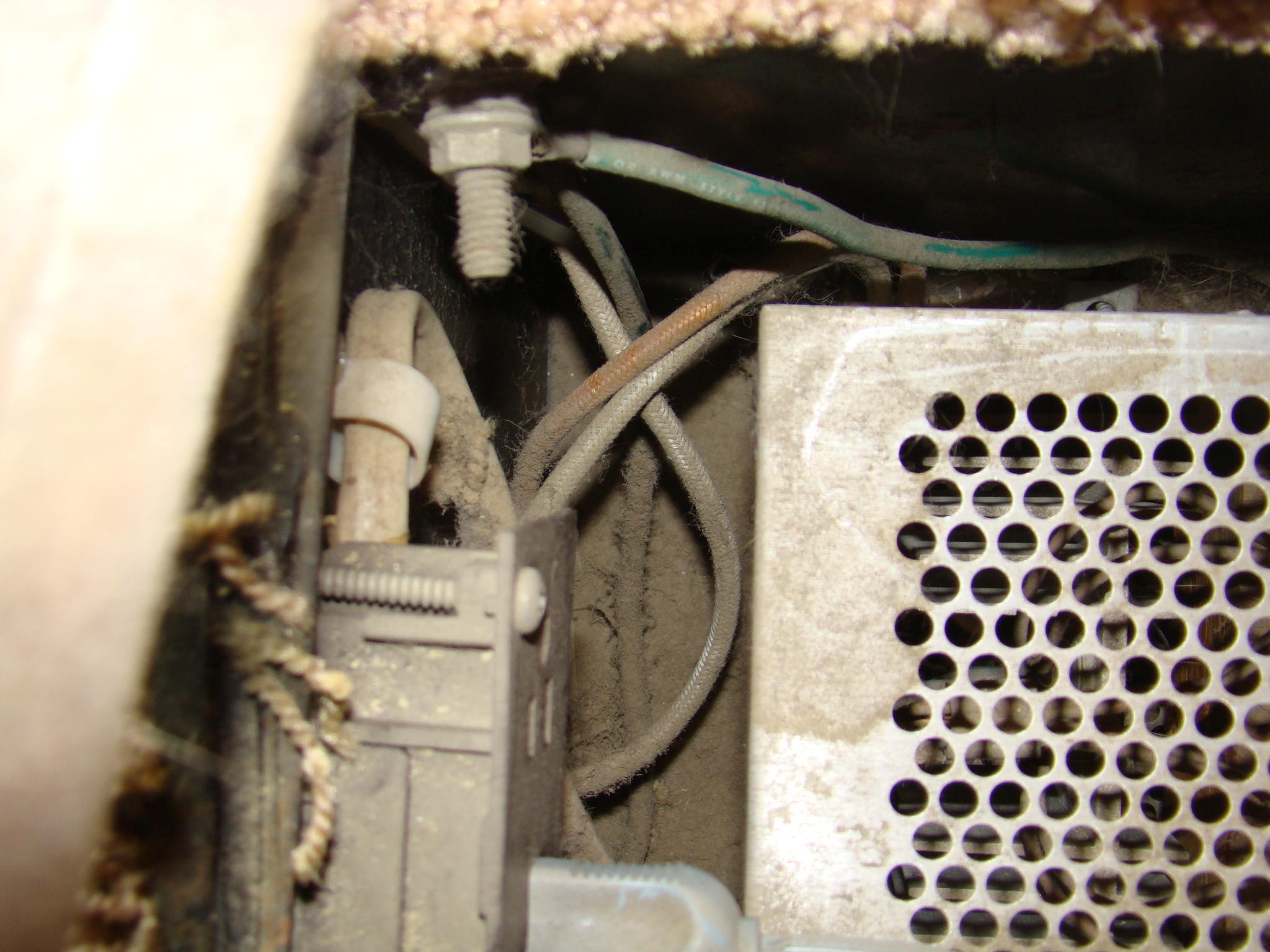

Power Converter
  1. Name: AC to DC Power Converter Port Side Fwd
  2. Location: Starboard Side under Passenger (Shotgun) seat
  3. View: Looking Down from Behind

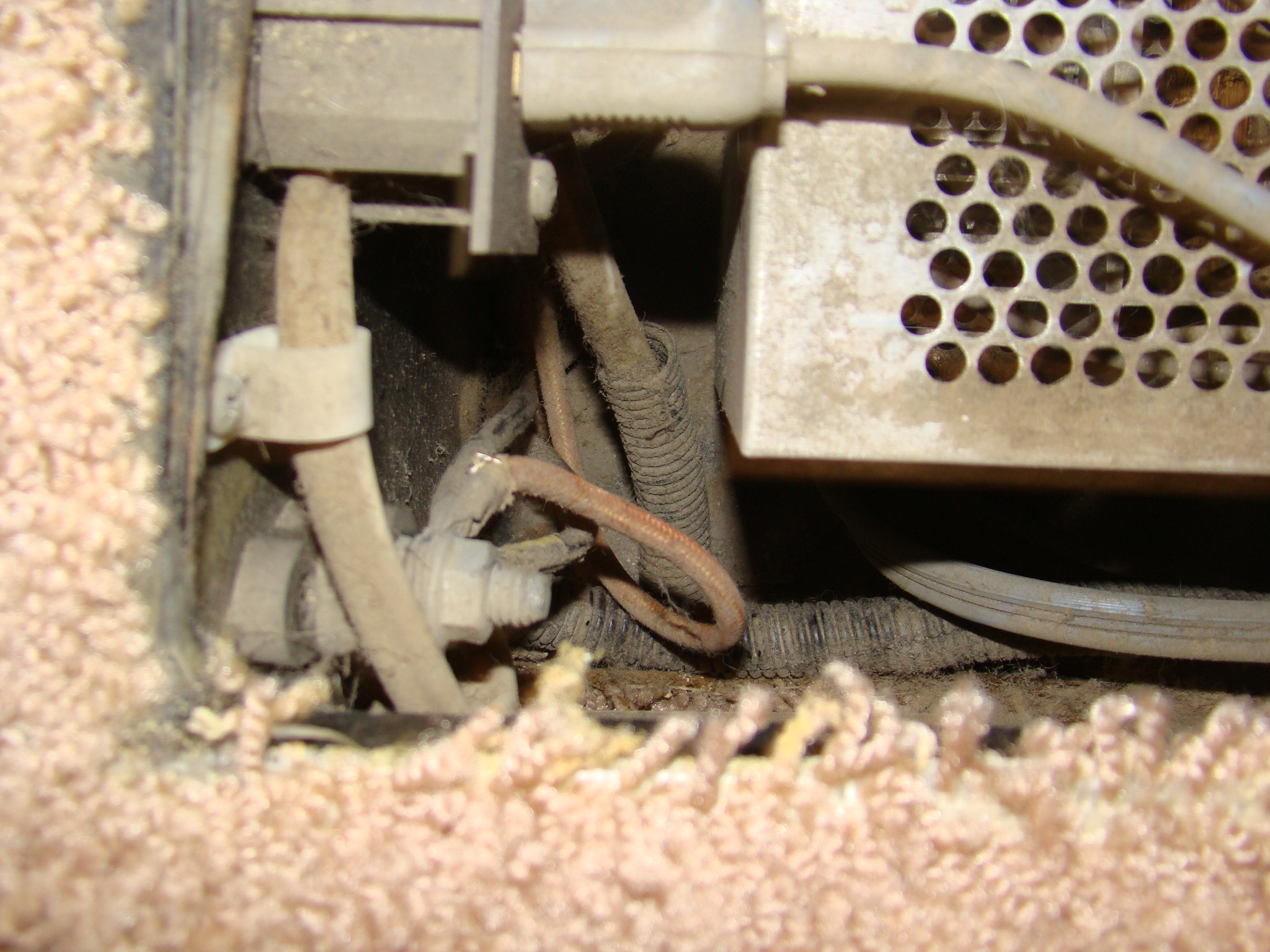

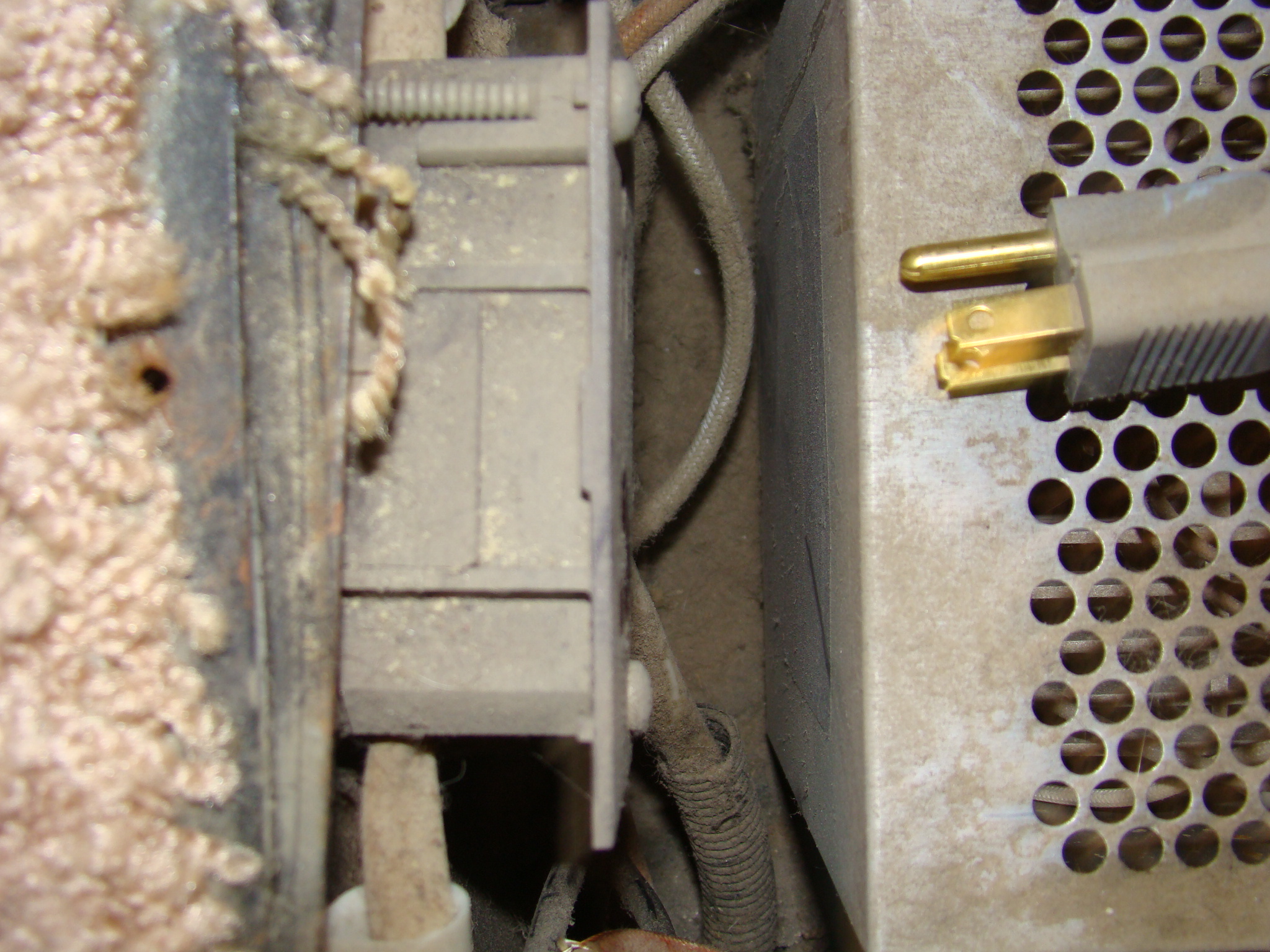

Power Converter
  1. Name: AC to DC Power Converter Port Side
  2. Location: Starboard Side under Passenger (Shotgun) seat
  3. View: Looking Down from Behind
Power Converter
  1. Name: AC to DC Power Converter Starboard Aft Side
  2. Location: Starboard Side under Passenger (Shotgun) seat
  3. View: Looking Down from Behind

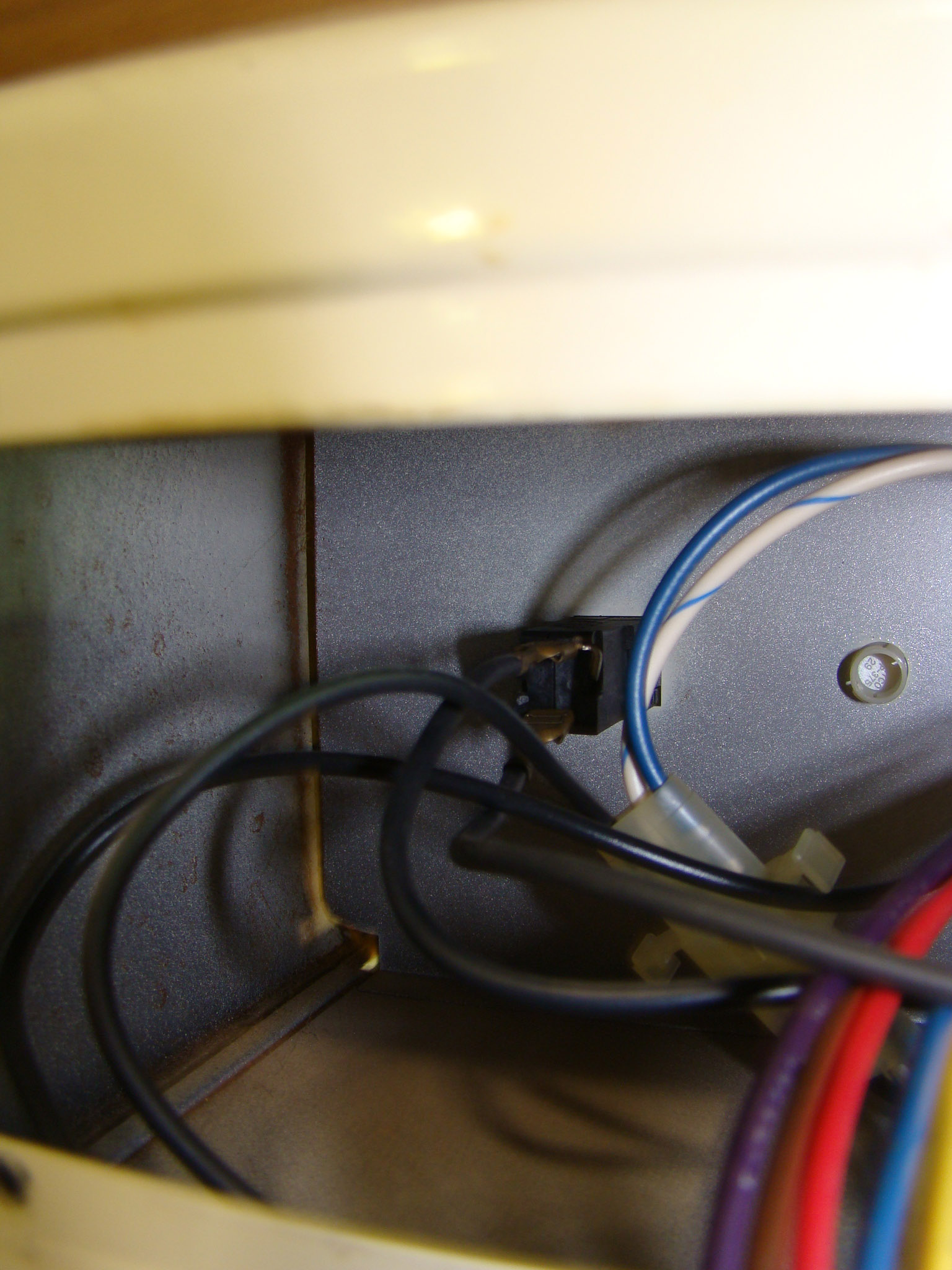

Power Converter
  1. Name: Fuse to DC Control Panel
  2. Location: Port Side Over Galley
  3. View: Looking into Compartment from front
Power Converter
  1. Name: Fuse to DC Control Panel
  2. Location: Port Side Over Galley
  3. View: Camera held under Galley Hood looking back out

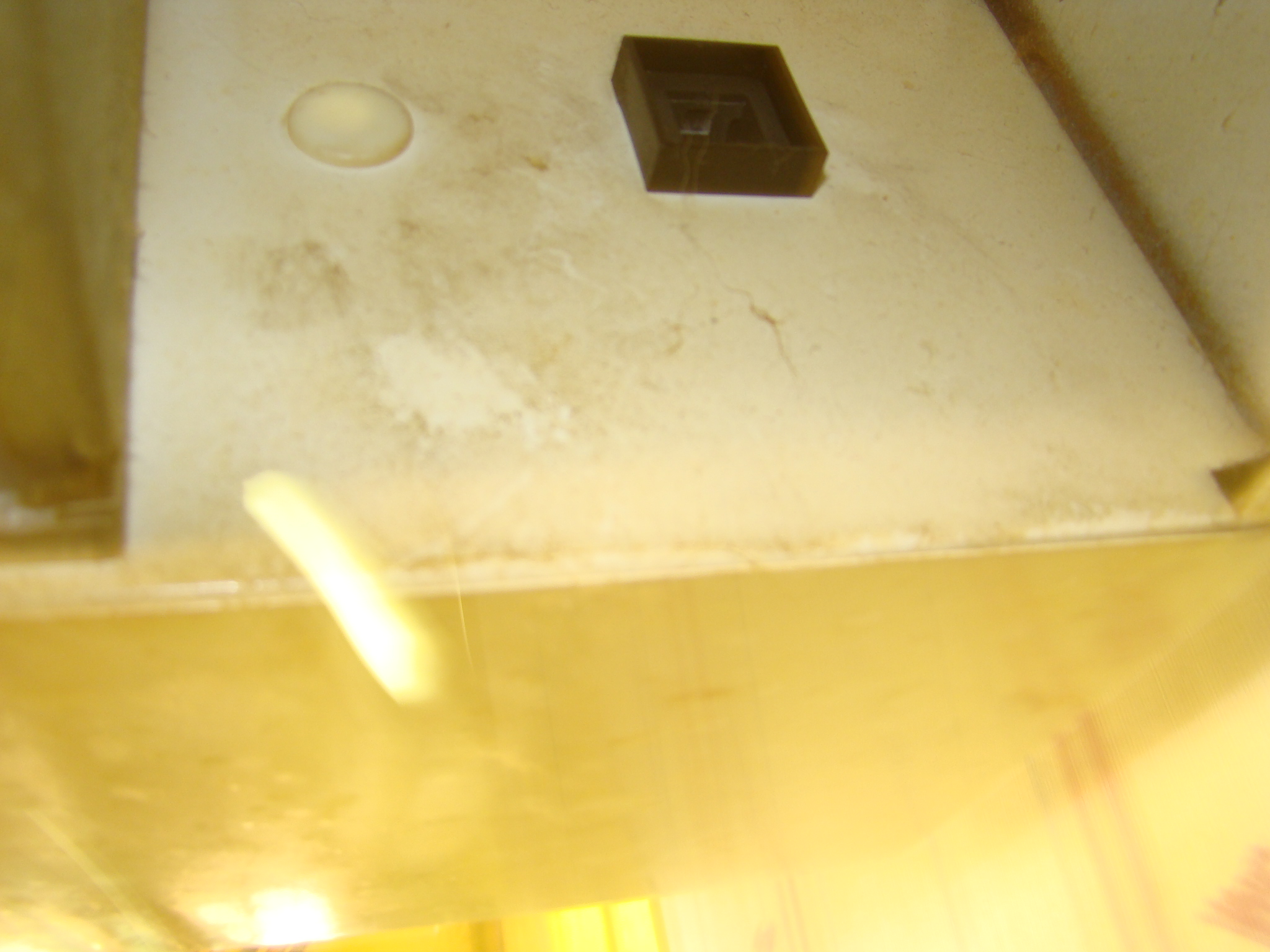

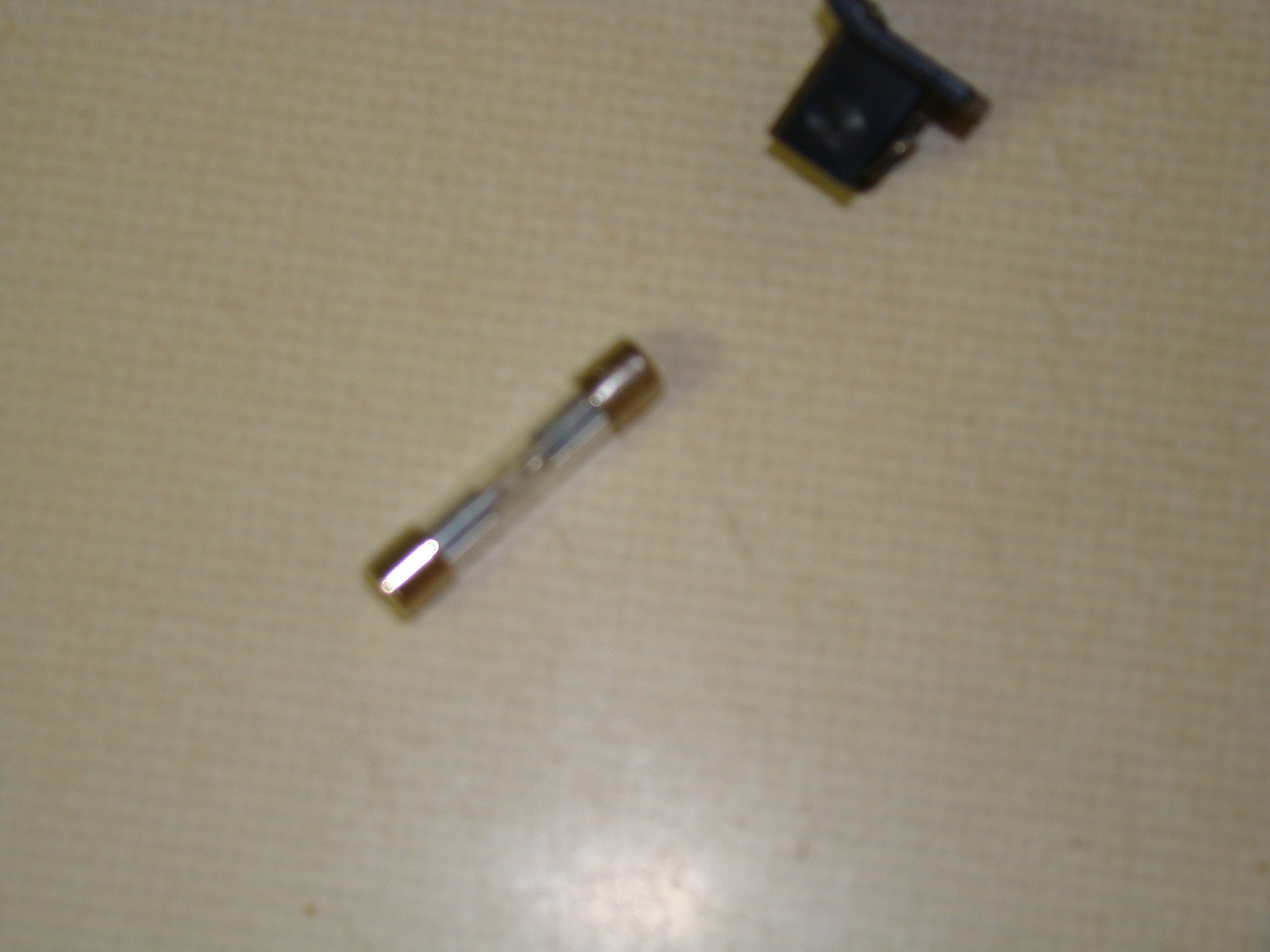

Power Converter
  1. Name: Fuse to DC Control Panel
  2. Location: Port Side Over Galley
  3. View: Fuse and Fuse Button poped out
